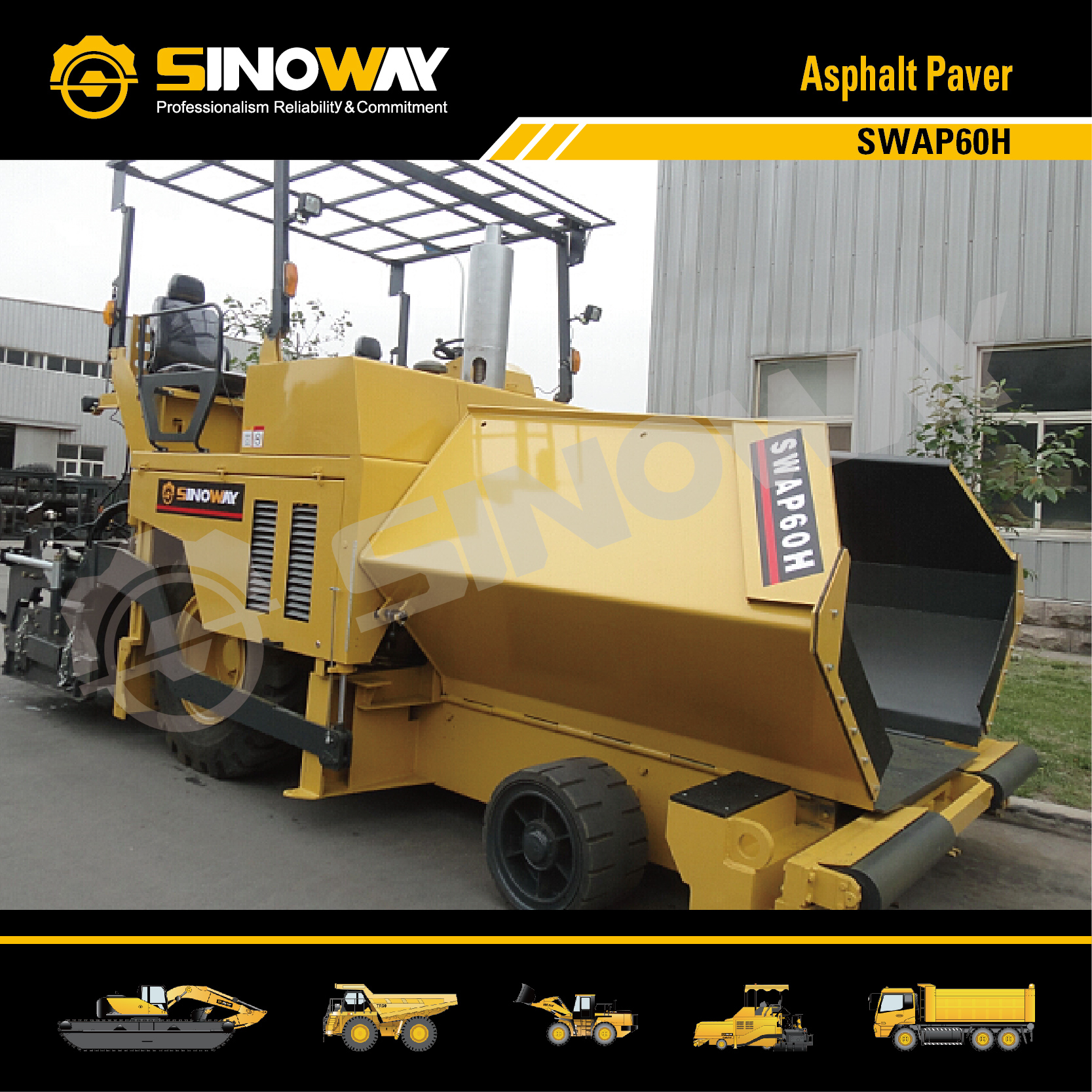

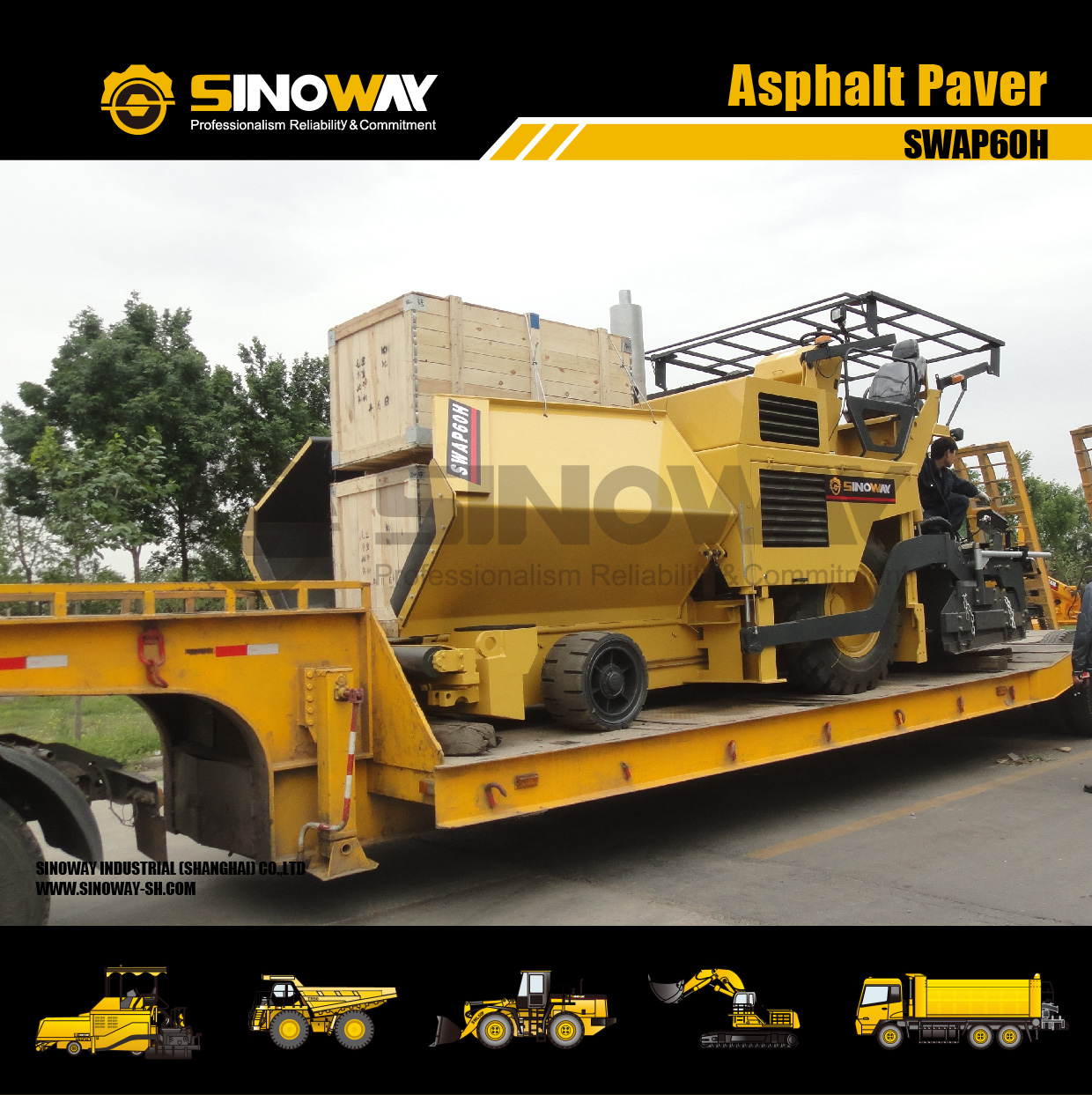

Asphalt paver (aslo called paver finisher, asphalt finisher, paving machine) is a piece of construction equipment used to lay hot asphalt on roads, bridges, parking lots and other such places. It lays the asphalt flat and provides minor compaction before it is compacted by a tandem vibratory roller.
Sinoway asphalt paver collection is best for your paving applications. From 4.5 meters paving width wheeled asphalt paver, to 12.5 meters width full hydraulic crawler asphalt paver, there is right paver for your pavement project.
Main Features
It is equipped with Cummins water-cooled engine, which has strong power and high reliability, and can be competent for poor paving conditions.
The screw feeding system and scraper feeding system are driven independently. The pump and motor imported from the original unit are matched reasonably and can be adapted to the transportation of any stabilized soil and asphalt mixture.
The screw distributor is automatically controlled by the ultrasonic level sensor, and the speed can be steplessly adjusted to meet the needs of different paving conditions.
Full-wheel drive can be selected to provide greater traction to meet the working conditions under heavy load and soft roadbed.
The unique dual brake protection device with patent protection can realize the whole vehicle braking safely and reliably under the condition of the main transmission system braking failure.
The whole machine is simple, generous, beautiful and easy to maintain.
| | |
| Model | Cummins |
| Type | Four-cylinder,water-cooled turbocharged,mechanical injection |
| Rated power | 93KW |
| Rated speed | 2200rpm |
| Main Technical Specification | |
| Basic paving width | 2500mm |
| Max. paving width | 6000mm |
| Max. paving thickness | 200mm |
| Min. paving thickness | 20mm |
| Travelling speed | 0~15km/h |
| Paving speed | 0~16m/min |
| Max. theoretic productivity | 400t/h |
| Operating weight | 16000Kg |
| Travelling Equipment | |
| Transmission | Full hydraulic |
| Under carriage | Wheel type |
| Working Equipment | |
| Screed plate | |
| Basic width | 2500mm |
| Crown adjustment | -1~3% |
| Extension model | Hydraulic to 4500mm |
| Heating | Diesel |
| Vibrating | |
| Frequency | 0~50Hz |
| Tamper | |
| Frequency | 0~25Hz |
| Hopper | |
| Capacity | 12000Kg |
| Discharge type | Hydraulic |
| Dimensions | |
| Overall length | 6290mm |
| Overall width | 2690mm |
| Overall height | 3020mm |
| Electric System | |
| Batteries | 2sets |
| System voltage 24V | 24V |
